Container – Scale WD 74

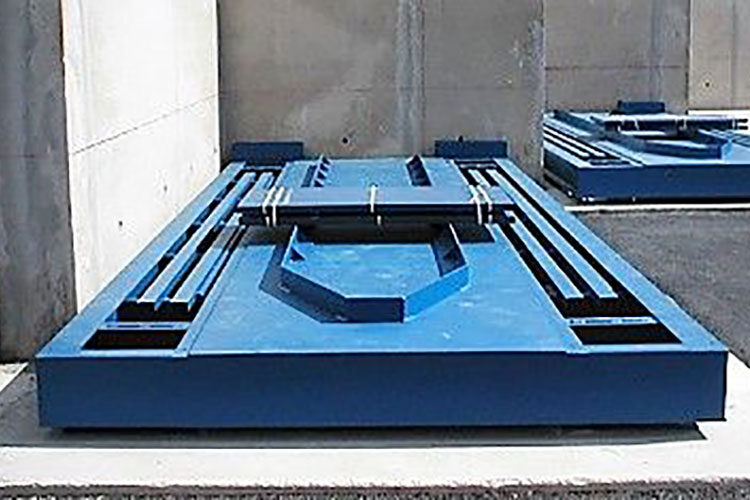

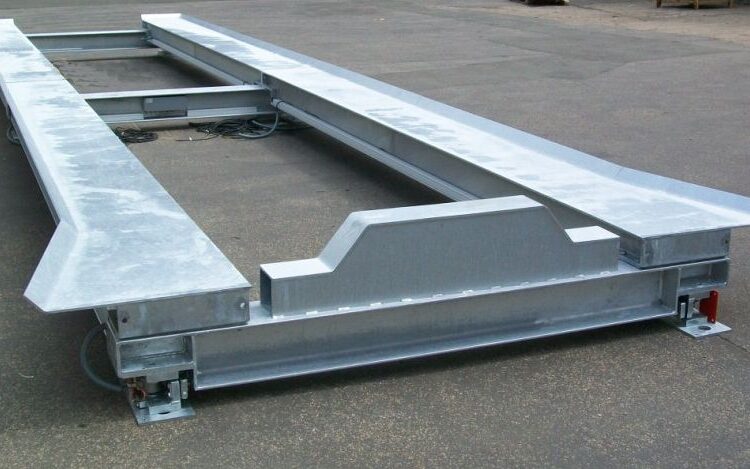

Container – Scale WD 74 – roll-off container, skip container or sea container

Above-ground scale for weighing roll-off containers, skip containers or sea containers under consideration of rough conditions at the place of installation and when placing the goods to be weighed

For information on determining the weight of sea containers within the scope of the SOLAS directive, please click here.

Technical data
Design description:	Above-ground scale in steel construction with sheet metal cover and roller guide, easy to move, with electromechanical scale underframe as well as operating terminal with weight display, data memory and interfaces
Special features:	Robust, easy to maintain, high operational reliability, long service life
Load capacity:	Up to 50 t evenly distributed
Weighing capacity:	Up to 40 t, choice of 5 kg, 10 kg, 20 kg, 50 kg increments, accuracy class III, legal for trade
Dimensions:	Available in many sizes, adapted to the container type
Operation:	Manually by weigher or driver
Weighing terminals:	IT series, German make with EU type approval
Substation:	Analogue strain gauge load cells with pendulum or elastomer bearing
Options:	Various operating terminals, additional equipment, signalling systems, digital strain gauge load cells
