Scales - High resolution truck scale WD 80 (v, o, s)
High resolution truck scale WD 80 (v, o, s)
Underfloor truck scale for precise test equipment monitoring
| Technical data | |
|---|---|
| Design description: | In-floor truck scale with prefabricated reinforced concrete bridge and pit as prefabricated (v), in-situ (o) or combined (s) version, relocatable, with electromechanical scale underframe as well as operating terminal with weight display, data memory and interface |

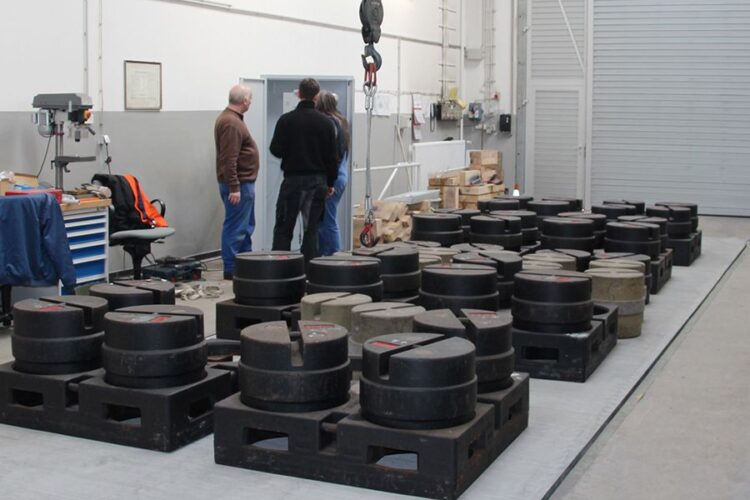

| Special features: | High-resolution, test equipment for calibration vehicles or similar, easy to maintain |
| Load capacity: | Max. 60 t, evenly loaded |
| Weighing capacity: | Up to 50 t, high-resolution up to 100,000 parts, numerical increments optionally 0.2 kg, 0.5 kg, 1 kg, 2 kg |
| Dimensions: | Bridge, length: 8 m - 12 m Bridge, width: 3 m Pit depth: 1.15 m Special dimensions possible |
| Operation: | Manual by weigher or driver |

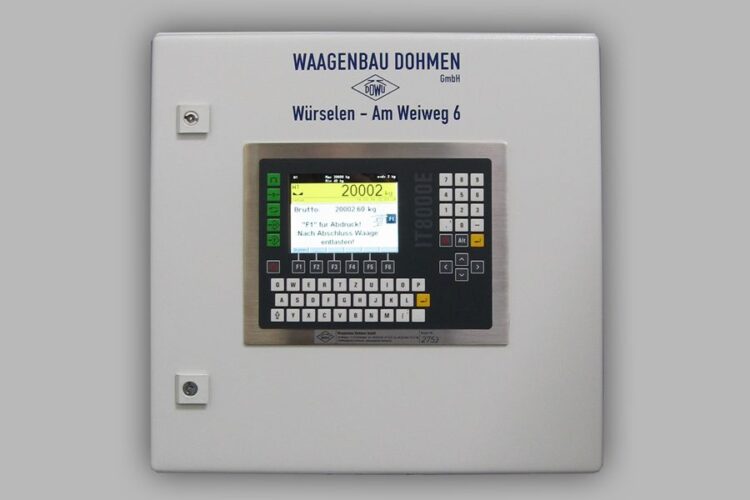

| Weighing terminals: | IT series, German make with EU type approval |
| Substructure: | Analogue strain gauge load cells with pendulum or elastomer bearing |
| Options: | Scraped shelves, various operating terminals, digital strain gauge load cells, position monitoring, additional equipment |
