Truck Scales and Rail Scales - Silo Scale WD 10
Silo Scale WD 10

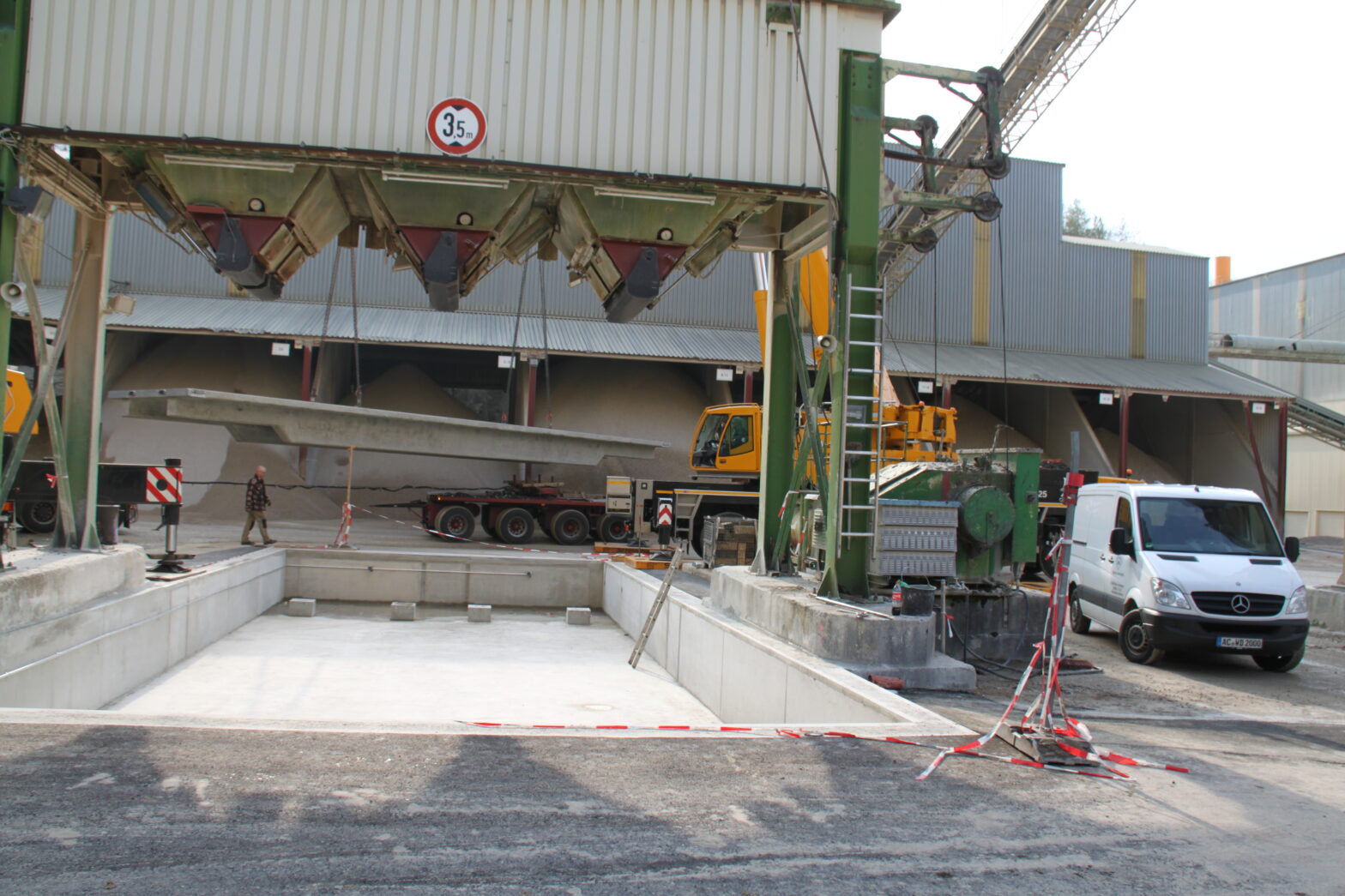

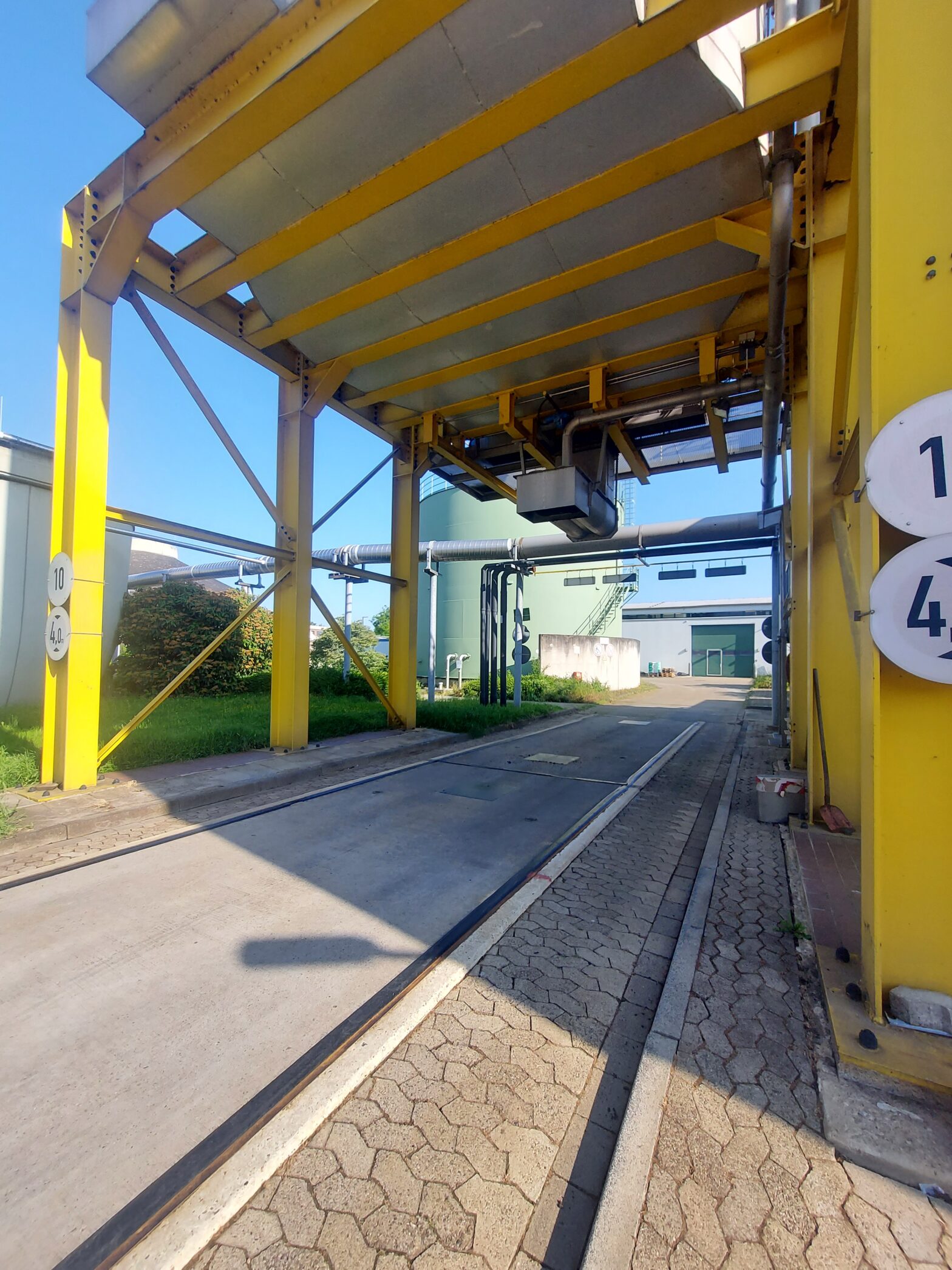

Underfloor truck scale for weighing road vehicles – including gigaliners and long trucks – in standard installations or in loading facilities.
| Technical data | |
|---|---|
| Design: | - In-ground scale with precast reinforced concrete deck and pit in precast (v), cast-in-place (o) or combined (s) construction, relocatable - With electromechanical weighing mechanism and operating terminal with weight display, data storage and interfaces |
| Special features: | - Robust, highly reliable, durable and easy to maintain |
| Load capacity: | - Design loads according to DIN 8119 up to 60 t |
| Weighing capacity: | - Up to 60 t, scale intervals of 10 kg, 20 kg or 50 kg - Accuracy class III, verifiable (legal for trade) |
| Dimensions: | - One-piece deck: length 8 m to 20 m, width 2.5 m to 3.5 m - Multi-piece deck: length up to 60 m, width 5.0 m to 10.5 m - Pit depth: 1.15 m |
| Operation: | - Manual, by weighbridge operator or driver |
| Weighing terminals: | - IT series, made in Germany, with EU type approval |
| Load cell system: | - Analogue strain gauge load cells with pendulum or elastomer bearings |
| Options: | - Special sizes, increased load capacity, curb guards, combined scale, various operating terminals, digital strain gauge load cells, position monitoring, traffic light system, additional equipment, inclined installation and much more |
